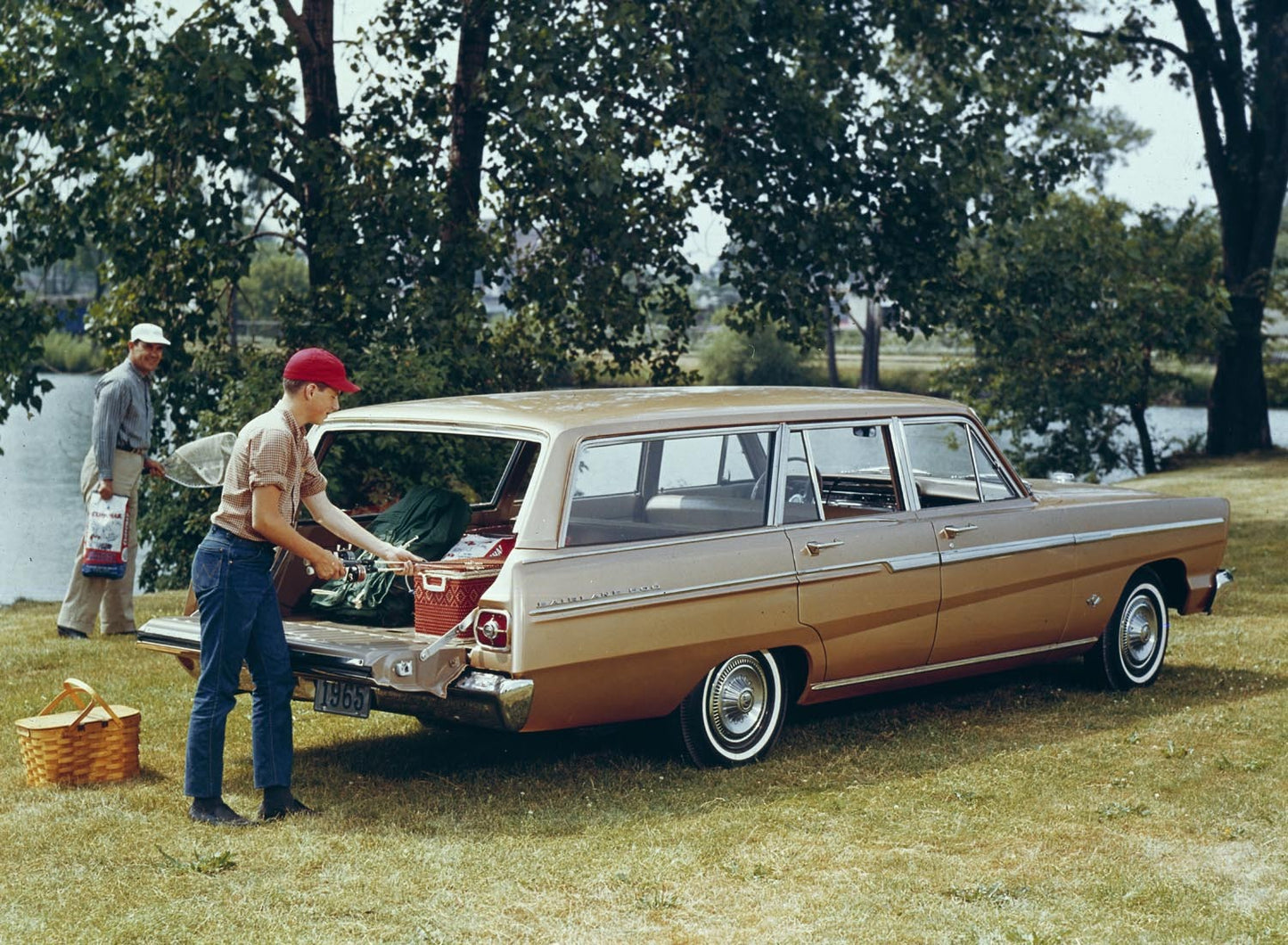

• A bronze-colored 1965 Ford Fairlane station wagon with a pale roof stands beside trees and water, with its rear tailgate open and people handling items behind it.
1 1
Commercial licensing & archive information

We represent the Ford Motor Company and Shelby American archives. For commercial image use, contact us about licensing. Images owned by The Henry Ford are available separately through the Benson Ford Research Center.

Original Ford brochures & specifications

Explore the original factory literature for this model. Complete PDFs are free to read or download; no checkout is required.

Model-range reference: match the body style and production period. A brochure does not establish the equipment fitted to the photographed car.

Save to Pinterest

FORD IMAGES

1965 Ford Fairlane station wagon — open tailgate beside trees and water — 0401-7789

1965 Ford Fairlane station wagon — open tailgate beside trees and water — 0401-7789

Archive SKU: 0401-7789

0401-7789 -

$159.00 USD
$159.00 USD
Sold out
Shipping calculated at checkout.

About This Image

A bronze-colored 1965 Ford Fairlane station wagon with a pale roof stands beside trees and water, with its rear tailgate open and people handling items behind it.

1965 Fairlane wagon factory specifications and equipment

These original Ford specifications describe the U.S. production Fairlane wagon range for 1965. They do not establish the engine, transmission or optional equipment fitted to the photographed car. Fairlane and Fairlane 500 wagon entries describe distinct trim ranges. Dedicated wagon literature is used for the technical entries below. Prototype, competition, Canadian and export vehicles remain separate. Horsepower values are period advertised ratings, not modern net ratings.

Fairlane four-door wagon
The U.S. wagon range included the Fairlane four-door station wagon.Sources (PDF positions): W: 7; S: 3; M: 1.
Fairlane 500 four-door wagon
The U.S. wagon range also included the Fairlane 500 four-door station wagon.Sources (PDF positions): W: 7; S: 3; M: 1.
Standard Six
The standard Fairlane wagon Six displaced 200 cu. in. and was advertised at 120 hp.Sources (PDF positions): W: 15; S: 9; M: 2.
Challenger V-8 option
The optional 289-cu.-in. Challenger V-8 was advertised at 200 hp.Sources (PDF positions): W: 15; S: 9; M: 2.
Challenger Special V-8 option
The optional 289-cu.-in. Challenger Special V-8 was advertised at 225 hp.Sources (PDF positions): W: 15; S: 9; M: 2.
Wheelbase
The listed Fairlane wagon wheelbase was 116 inches.Sources (PDF positions): W: 15; S: 9; M: 2.
Overall width
The listed Fairlane wagon overall width was 73.8 inches.Sources (PDF positions): W: 15; S: 9; M: 2.
Front tread
The listed front tread was 57 inches.Sources (PDF positions): W: 15; S: 9; M: 2.
Rear tread
The listed rear tread was 56 inches.Sources (PDF positions): W: 15; S: 9; M: 2.
Standard manual transmission
A three-speed manual transmission was listed as standard; the Six and V-8 manual designs differed.Sources (PDF positions): W: 15; S: 9; M: 2.
Automatic transmission option
Cruise-O-Matic was listed as an optional transmission. Availability is described at model-range level and does not identify the transmission in this photograph.Sources (PDF positions): W: 15; S: 9; M: 2.

Publication differences and research limits

The dedicated wagon catalog is used here because the general Fairlane retail catalog specification page expressly excludes wagons. Overall length differs: the wagon catalog and AMA summary list 203 inches, while the dealer facts table lists 203.2. Height and weight figures also differ; no reconciled length, height or weight is asserted. The high-performance 289 listed in general Fairlane sources is not included in the dedicated wagon power-team table and is not presented as a wagon option.

Seat capacity, optional third seats, cargo volume, paint codes, production totals and detailed engine/transmission combinations are not inferred for the photographed wagon. Ford publications share corporate origin; the retail wagon catalog, dealer facts book and revised technical submission are distinct publication families. PDF positions count covers. The AMA submission is dated September 7, 1964 and revised October 15, 1964.

Source key and original publications:

  • W — The 1965 Wagons from Ford, original U.S. retail wagon catalog; 16 PDF positions. Fairlane models and equipment PDF 7; dimensions and power teams PDF 15. Complete original PDF
  • S — Ford Salesman’s ’65 Total Performance Facts — U.S. dealer quick reference, 20 PDF positions. Cover PDF 1; series/model matrix PDF 2–3; Fairlane features/specifications PDF 8–9 (printed 8–9); full-size Ford specifications PDF 11 (printed 11). No exact issue date established from the inspected pages. Complete free PDF . Complete original PDF
  • M — Ford Motor Company AMA Specifications—Passenger Car, Fairlane, model year 1965. Issued 9-7-64, revised 10-15-64. 41 PDF positions. Body table at PDF 1 (unnumbered title sheet); general/engine summary PDF 2 (printed 1). Ford-prepared technical submission, not a separate corporate origin. Complete free PDF . Complete original PDF

1965 Ford Fairlane factory reference

Read the complete 1965 Ford wagon brochure
