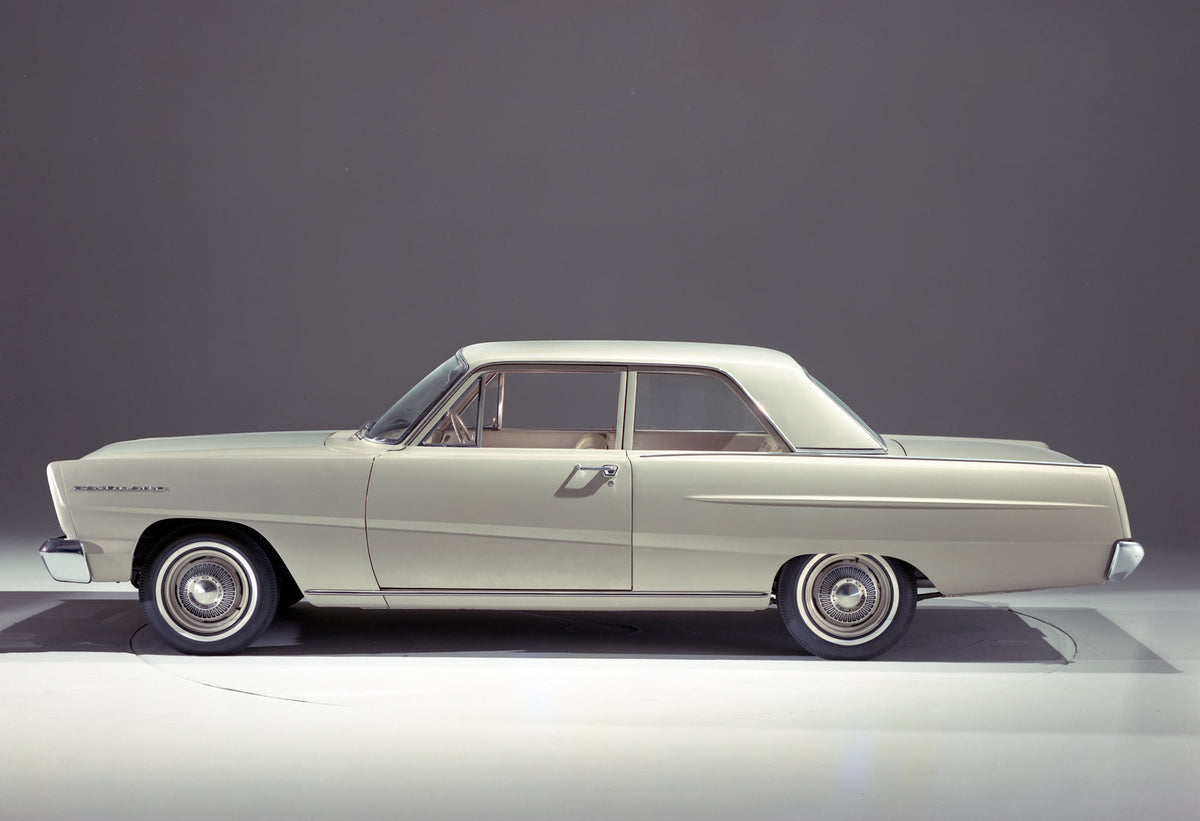

1965 Ford Fairlane two-door sedan — studio side profile — HV 1965-0058

1965 Fairlane factory specifications and equipment

These original Ford specifications describe the U.S. production Fairlane model range for 1965. They do not establish the engine, transmission or optional equipment fitted to the photographed car. Fairlane and Fairlane 500 entries describe distinct trim ranges; Sports Coupe equipment is not inferred from a hardtop body. The retail catalog specification page excludes wagons, and these technical entries must not be applied to wagon photographs. Prototype, competition, Canadian and export vehicles remain separate. Horsepower values are period advertised ratings, not modern net ratings.

Fairlane two-door sedan

The U.S. range included the Fairlane two-door sedan.Sources (PDF positions): F: 5; S: 2–3; M: 1 (body table).

Fairlane four-door sedan

The U.S. range included the Fairlane four-door sedan.Sources (PDF positions): F: 5; S: 2–3; M: 1 (body table).

Fairlane 500 two-door sedan

The U.S. range included the Fairlane 500 two-door sedan.Sources (PDF positions): F: 4; S: 2–3; M: 1 (body table).

Fairlane 500 four-door sedan

The U.S. range included the Fairlane 500 four-door sedan.Sources (PDF positions): F: 4; S: 2–3; M: 1 (body table).

Fairlane 500 two-door hardtop

The U.S. range included the Fairlane 500 two-door hardtop.Sources (PDF positions): F: 3; S: 2–3; M: 1 (body table).

Fairlane 500 Sports Coupe two-door hardtop

The U.S. range included the Fairlane 500 Sports Coupe two-door hardtop.Sources (PDF positions): F: 3; S: 2–3; M: 1 (body table).

Station wagons

Fairlane and Fairlane 500 four-door station wagons were listed. Optional third-seat capacity is not inferred from the standard body table.Sources (PDF positions): F: 6 (10); S: 3; M: 1 (body table).

Standard Six

The standard Fairlane Six displaced 200 cu. in. and was advertised at 120 hp.Sources (PDF positions): F: 7 (back-cover engines); S: 8–9; M: 2 (1).

Challenger V-8 option

The optional 289-cu.-in. Challenger V-8 was advertised at 200 hp.Sources (PDF positions): F: 7 (back-cover engines); S: 8–9; M: 2 (1).

Challenger Special V-8 option

The optional 289-cu.-in. Challenger Special V-8 was advertised at 225 hp.Sources (PDF positions): F: 7 (back-cover engines); S: 8–9; M: 2 (1).

High Performance V-8 option

The optional 289-cu.-in. Challenger High Performance V-8 was advertised at 271 hp. See the unresolved compression difference below.Sources (PDF positions): F: 7 (back-cover engines); S: 8–9; M: 2 (1).

Wheelbase

The listed wheelbase was 116 inches.Sources (PDF positions): F: 7; S: 9; M: 2 (1).

Standard manual transmission

A three-speed manual transmission was listed as standard. The six-cylinder and V-8 manual specifications were not identical.Sources (PDF positions): F: 7; S: 9; E: 15.

Automatic option

Cruise-O-Matic was listed as an optional transmission. This reference does not approve every engine/body combination without consulting the dated tables.Sources (PDF positions): F: 7; S: 9; M: 2 (1).

Publication differences and research limits

The retail catalog back cover gives 198.8 inches overall length; the dealer facts sheet gives 198.4 for its four-door six-cylinder sedan, while the revised AMA summary gives 199.0. Heights also differ. No single overall length or height is promoted as a reconciled specification. For the high-performance 289, the catalog and facts sheet give 10.5:1 compression, while AMA PDF 2 gives 10.9:1. This remains unresolved; no definitive compression ratio is supplied. The AMA labels the other engine ratios nominal. Four-speed and automatic availability descriptions differ in detail, so an unrestricted combination matrix is withheld.

Production totals, VIN and paint codes, prices, exact changeover dates and additional numerical specifications remain pending three-family verification. Source qualifications and model restrictions must be retained when using these documents.

Source key and original publications:

• F — The Total Performance 1965 Fairlanes — U.S. retail catalog, 7 PDF positions. Cover PDF 1; hardtops PDF 3 (printed 4–5); Fairlane 500 sedans PDF 4 (6–7); Fairlane sedans PDF 5 (8–9); wagons/options PDF 6 (10–11); unnumbered back-cover specifications PDF 7. Exact printing date not established. Complete free PDF . Complete original PDF
• S — Ford Salesman’s ’65 Total Performance Facts — U.S. dealer quick reference, 20 PDF positions. Cover PDF 1; series/model matrix PDF 2–3; Fairlane features/specifications PDF 8–9 (printed 8–9); full-size Ford specifications PDF 11 (printed 11). No exact issue date established from the inspected pages. Complete free PDF . Complete original PDF
• M — Ford Motor Company AMA Specifications—Passenger Car, Fairlane, model year 1965. Issued 9-7-64, revised 10-15-64. 41 PDF positions. Body table at PDF 1 (unnumbered title sheet); general/engine summary PDF 2 (printed 1). Ford-prepared technical submission, not a separate corporate origin. Complete free PDF . Complete original PDF
• E — The Car in Your Dream House Driveway — original Ford employee publication, archived as 1965 FMC Family of Cars; 16 PDF positions. Publisher identified at PDF 2 as Employee Information Department, Personnel and Organization Staff. Model-year 1965 summary at PDF 15, unnumbered. A separately authored corporate employee publication, not a second edition of the retail catalog. Exact issue date not established. Complete free PDF . Complete original PDF

1965 Ford Fairlane factory reference

Read the complete 1965 Ford Fairlane brochure
